What an Automation Can Do For Your Cylinder Fill Plant

From controls and manifolds to pumps and bulk storage, here's what modernizing a filling operation actually involves, and what it pays back.

Cylinder fill plants are built to last, and many have. It's common to find filling operations that have run dependably for decades on the same fundamental process: an operator connecting cylinders by hand, watching scales, gauges, and managing valves and fill pressures manually. The equipment still works. The question owners are increasingly asking is whether the process still makes sense for safety, for labor, and for the volumes their customers now expect.

Automation is how a plant answers that question without starting over. Here's what CTR can bring to a filling operation, and what each piece delivers.

Automated-Recipe-Driven Filling

At the core of a modern fill plant is PLC-controlled filling system managed from a touchscreen interface. The operator selects the exact gas or gas-mixture recipe on screen, and the system runs the fill cycle by continuously monitoring pressure and temperature, eliminating the dependence on gravimetric scales (when tolerances allow for no scales), where vibration and wind can throw off readings. The result is a repeatable fill, cylinder after cylinder, with the process parameters logged and monitored from start to finish rather than riding on operator judgment.

Manifolds and Handling Designed Around the Work

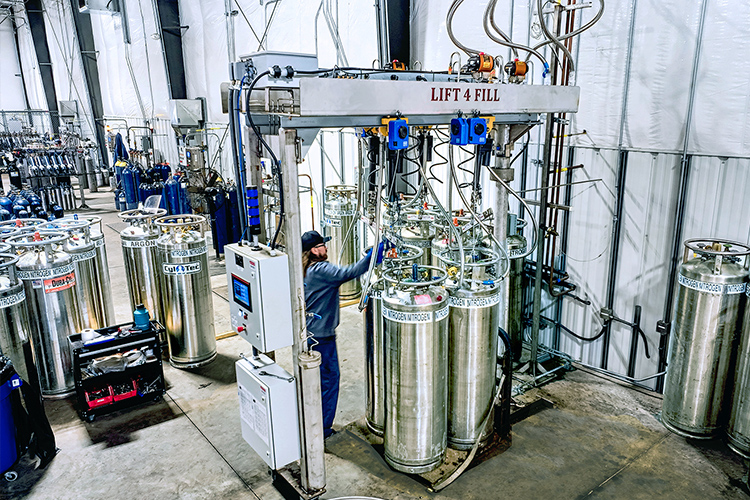

Filling efficiency is won or lost at the manifold. CTR engineers and integrates high-pressure cylinder manifolds in standard and custom configurations, along with handling systems designed to reduce strain and wasted motion, from manifolds that align cylinders directly without pigtails, to adjustable-height designs that let operators work at safe, ergonomic positions, to fully automated liquid cylinder filling with PLC control. The right configuration depends on what a plant fills and how much of it; the design work is matching the equipment to the operation, not the other way around.

The Full System Behind the Fill

A fill plant is more than the filling station. CTR's scope runs through the entire gas path: cryogenic bulk storage tanks, cryogenic pumps and pump skids, vaporization, vacuum-jacketed piping, and the safety panels and interlocks that protect both operators and equipment. For plants filling medical or high-purity oxygen, that includes the rigorous oxygen-cleaning protocols those services demand. And because CTR handles engineering, fabrication, installation, and commissioning as one team, the controls, equipment, and piping arrive designed to work together rather than assembled from mismatched parts.

What Owners Get Out of It

• Safety. Automation reduces hands-on operator interaction with high-pressure equipment during the fill cycle, and continuous monitoring with automated safeguards adds protection a manual process can't provide.
• Labor. One operator can manage significantly more filling capacity, which matters when experienced plant labor is hard to hire and harder to keep.
• Consistency. Recipe-driven fills mean the product going out the door is right every time, a bigger deal than ever as specialty and medical gas requirements tighten.
• Throughput and room to grow. Automated cycles and purpose-built handling keep cylinders moving at a pace manual filling can't sustain, and modular designs leave room to add capacity as demand grows.



New Build or Upgrade: Both Parts Are Open

None of this requires a greenfield facility. Much of the opportunity in the industry right now is in existing plants: adding modern automation, controls, and handling equipment to operations that have been in service for 20, 30, or 40 years, and bringing them up to today's standards in safety and efficiency. CTR takes on both, complete turnkey fill plants from concept through commissioning, and targeted upgrades that modernize what a plant already has.

If you're weighing what an automation upgrade would mean for your operation, CTR's engineering team can walk through it with you, where the labor hours go, where the safety exposure sits, and what the path from your current plant to an automated one actually looks like.

Contact us to start the conversation.

Frequently Asked Questions

Can an existing cylinder fill plant be automated?

Yes. Automation does not necessarily require building a new facility. Existing cylinder fill plants can be upgraded with modern PLC controls, filling equipment, manifolds, handling systems, pumps, and other components based on the needs of the operation.

What does an automated cylinder filling system control?

Automated filling systems can use PLC controls and touchscreen interfaces to manage fill cycles while monitoring parameters such as pressure and temperature. Recipe-driven controls can also help operators manage different gases and gas mixtures more consistently.

What are the benefits of automating a cylinder fill plant?

Automation can help improve operator safety, reduce hands-on labor during filling, increase consistency, improve throughput, and provide additional capacity for future growth.

Can CTR support more than the cylinder filling equipment itself?

Yes. CTR's capabilities can extend across the full gas supply and filling system, including cryogenic bulk storage, pumps and pump skids, vaporization, vacuum-jacketed piping, manifolds, controls, safety systems, installation, and commissioning.

Does CTR support oxygen and medical gas filling applications?

Yes. CTR supports filling systems for medical and high-purity oxygen applications, including the oxygen-cleaning requirements associated with those services.

Does CTR build both new fill plants and upgrades?

Yes. CTR can support complete turnkey cylinder fill plants as well as targeted upgrades that add automation, controls, handling equipment, and other modern capabilities to existing facilities.
