CO2 WATER BATH VAPORIZER

For High-Pressure
Mixed Gas Cylinder Filling

Heated Water Bath CO2 Vaporizer

High Performance Vaporization

CTR’s CO₂ Water Bath Vaporizer is an engineered solution designed to improve safety, efficiency, and consistency in industrial and mixed-gas cylinder filling operations. Built for fill plants, it combines controlled water heating, circulation, and RTD monitoring to deliver stable, precise gas temperatures while protecting gas quality throughout the process.

Constructed with all-stainless steel, double-wall insulation and an integrated control enclosure, the system generates up to 115,000 BTUs of stored energy and includes adjustable water temperature controls, bypass and drain valves, and multiple voltage options. By consolidating heating, circulation, and control into a single compact unit, the CO₂ Water Bath Vaporizer meets site-specific requirements while enabling faster, more controlled cylinder filling.



CONTACT US

Call us today to speak with one of our cylinder filling systems specialists at: +1 (888) 424-8101 or click to contact us below:

Request a Quote

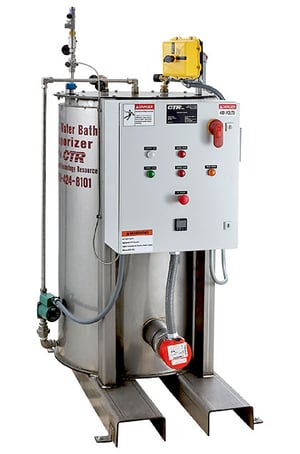

CO2 Waterbath Vaporizer_Working



Our CO2 Water Bath Vaporizers are custom-engineered to your specifications.

Typical Specifications:

System Type: Semi-custom, stainless steel water bath vaporizer with integrated control enclosure

Gas Capability: Designed for CO₂ and mixed-gas cylinder filling operations

Outlet Temperature: Precisely controlled via RTD monitoring for consistent gas quality

Construction: All-stainless steel, double-wall insulated bath for durability and energy efficiency

Water Temperature Control: Adjustable switch and gauge for fine-tuned process management

Circulation: Hot water circulation pump ensures uniform heating and reliable vaporization

Flow Control: Bypass valve included for operational flexibility and maintenance

Water Supply: Solenoid-controlled water inlet for automated fill and circulation

Heater Options: 208V, 240V, or 480V units available (specify on order)

Tank Drain: Integrated drain valve simplifies cleaning and maintenance

Energy Capacity: Generates up to 115,000 BTUs of stored heat energy

Integration: Compact design supports seamless integration into existing CTR fill systems or new installations

Customization: Heater, enclosure, and control configurations tailored to site-specific requirements

Actual physical dimensions, heater configuration, and control options are determined based on each customer's application and site requirements.

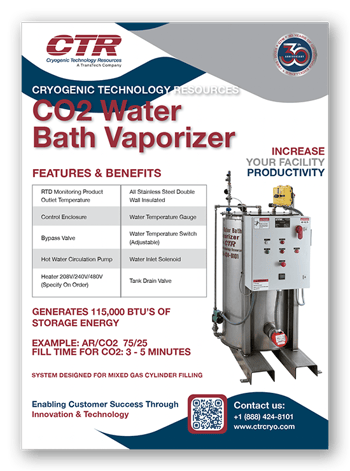

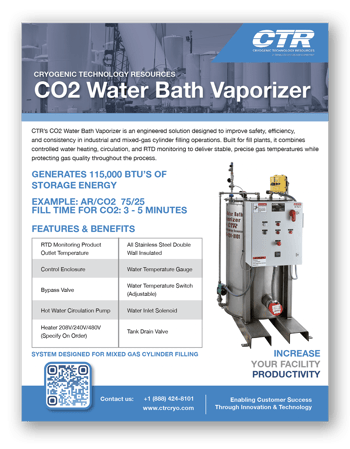

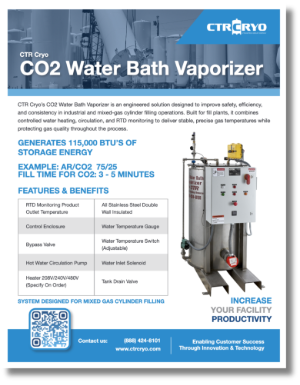

CTR_CO2 Water Bath Vaporizer_for Mixed Gas Cylinder Filling_BrochureBrochure_2
