MULTI GAS DUAL SWING ARM DUPLEX MIX CONTROL PANEL

Innovative High-Pressure Gas
Cylinder Fill System Control Panel

MULIT GAS CYLINDER FILL CONTROL PANEL

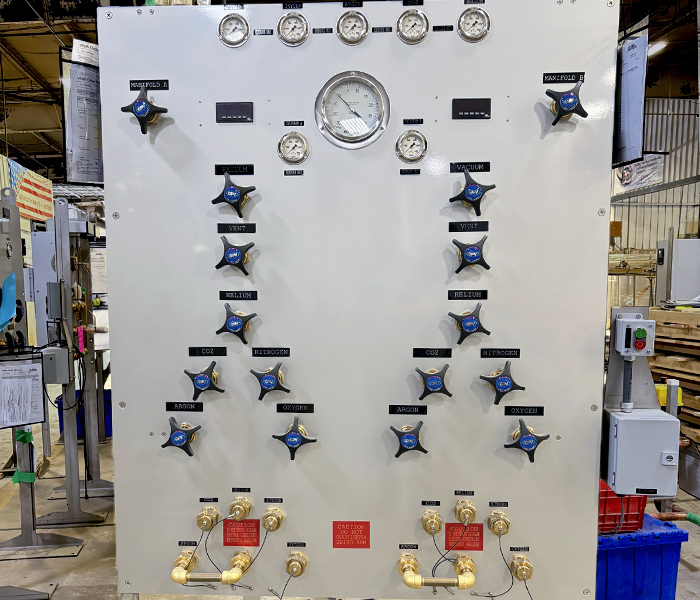

Multi Gas Dual Swing Arm Duplex Mix Panel


CTR’s Multi-Gas Dual Swing Arm Duplex Mix Control Panel is a custom-engineered solution designed for precise control of industrial gas mixtures in cylinder production environments.

Built to support demanding fill operations, the panel provides accurate, repeatable gas blending through a clear digital readout, helping operators maintain consistent mix ratios while improving process efficiency.  Its duplex configuration allows the panel to control two independent fill systems, supporting higher throughput and flexible production workflows.

Designed for high-pressure industrial gas service, the panel is rated for a maximum allowable working pressure (MAWP) of 3,600 PSI and is available in two-, three-, four-, or five-gas configurations to suit a wide range of mixing requirements. Integrated swing arms simplify changeover and operation, while CTR’s proven control design expertise ensures intuitive operation, and long-term durability in cylinder filling applications.



CONTACT US

Call us today to speak with one of our cylinder fill system control specialists at: +1 (888) 424-8101 or click to contact us below:

Contact Us

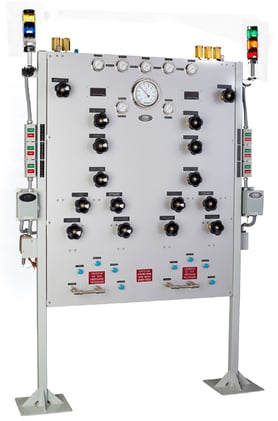

3 - Manual Multi Gas Duplex Control Panel for Pressure Cylinder Filling



Our Multi-Gas Dual Swing Arm Duplex Mix Panels are custom-engineered to application requirements.

Typical Specifications:

System Type: Industrial gas mixing and cylinder fill control panel

Application: Designed for cylinder production and high-pressure industrial gas filling operations

Fill System Capability: Duplex configuration capable of controlling two independent fill systems

Gas Configurations: Available in two-, three-, four-, or five-gas mixing arrangements

Pressure Rating: Maximum allowable working pressure (MAWP) up to 3,600 PSI

Operational Features: Digital readout for precise gas ratio control and repeatable mix accuracy

Control Architecture: Engineered control logic for stable, repeatable blending and fill sequencing

Operator Interface: Swing arm design for improved accessibility, ergonomics, and efficient changeover

Safety & Protection: High-pressure components and interlocks designed to support safe cylinder filling operations

Integration: Compatible with new or existing cylinder fill systems and facility gas supply infrastructure

Customization: Engineered to customer-defined gas types, mix ratios, fill pressures, and production requirements



Actual physical dimensions, controls, and final configurations are tailored to each customer application.

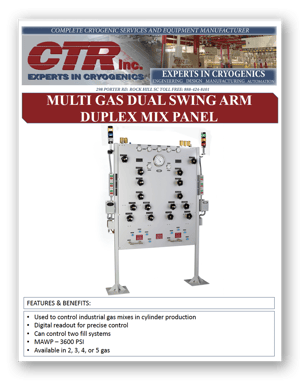

Multi Gas Dual Swing Arm Duplex Mix Panel - brochure cover
