FINAL LINE MANIFOLDS FOR MEDICAL GAS PIPELINE SYSTEMS (MGPS)

Precision Pressure Control For O2, Medical Air, N2O, CO2, N2, and He

MEDICAL GAS FINAL LINE PRESSURE CONTROL MANIFOLDS

High Performance Final Line Manifolds


CTR’s Medical Final Lines are engineered gas distribution assemblies designed to deliver safe, reliable point-of-use pressure control for medical gas systems. Built for hospitals, surgery centers, and healthcare facilities, these manifold assemblies ensure stable downstream pressure while maintaining compliance with applicable medical gas standards. Designed for seamless integration into bulk storage or cylinder supply systems, our Medical Final Lines support oxygen, nitrous oxide, medical air, nitrogen, and other clinical gases.

Each assembly is fabricated with precision regulators, isolation valves, gauges, and relief devices arranged for redundancy, serviceability, and continuous operation. Cleaned for oxygen service and assembled in accordance with medical gas best practices, the systems promote patient safety while simplifying installation and maintenance. Compact, clearly labeled, and professionally piped, CTR’s Medical Final Lines provide dependable performance and long-term reliability in critical care environments.

CONTACT US

Call us today to speak with one of our cryogenic pump automation and control specialists at: +1 (888) 424-8101 or click to contact us below:

Contact Us

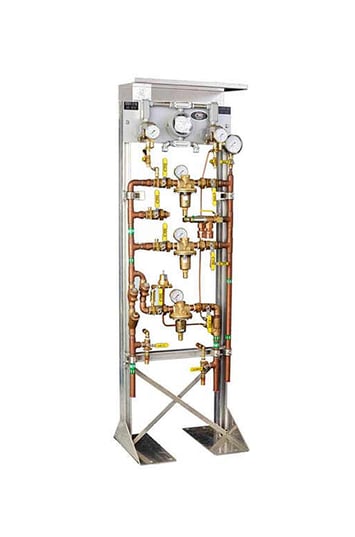

4 - Medical Final Line - Gas Manifold



CTR Hospital Final Line Controls are custom-engineered to ensure safe, uninterrupted delivery of medical gases within healthcare facilities..

Typical Specifications:

System Type: Medical gas final line pressure control assembly

Inlet Sources: Controls pressure from both primary bulk storage and/or reserve storage systems

Pressure Regulation:  Reduces and maintains required downstream medical gas pressure

Automatic / Manual Changeover: Optional dual regulator configuration allows maintenance or service without interrupting downstream gas delivery

Safety Relief Valves: Incoming and outgoing safety relief valves included as standard

Pressure Monitoring: Main and reserve pressure switches alert staff to pressure loss or system issues

Serviceability: Excess flow valves on pressure switches allow replacement of defective switches without interrupting gas flow

Local Indication: Available with visual local signal for clear on-site status indication

Code Compliance: Designed for medical gas service and integration with hospital alarm and monitoring systems

Customization: Engineered to customer-defined gas type, inlet pressures, required delivery pressure, redundancy requirements, and applicable healthcare code standards.

Final configuration, regulator sizing, materials, alarm features, and mounting arrangements are tailored to each facility’s medical gas infrastructure.

Final configuration, regulator sizing, materials, alarm features, and mounting arrangements are tailored to each facility’s medical gas infrastructure.
