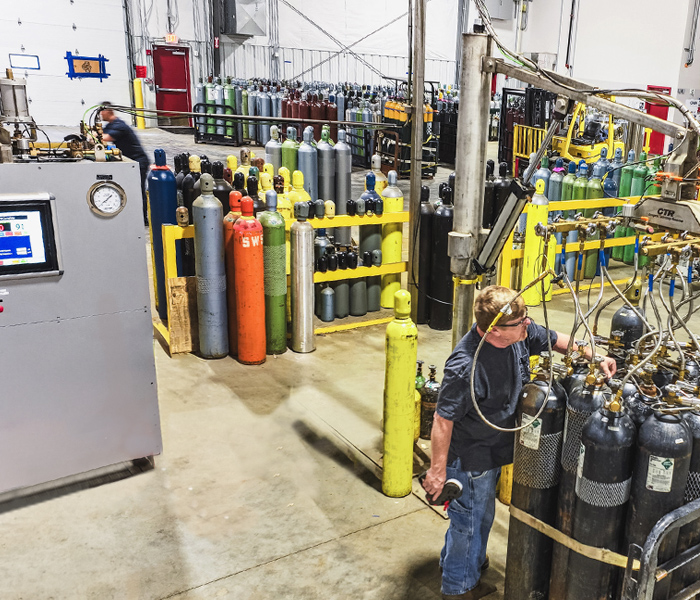

ACE 5-Gas Panel Installed in a High-Pressure Fill Plant _10

ACE 5-GAS Panel

Advanced Multi-Gas Filling
Automation & Control

ADVANCED FILLING SYSTEM

HIGH-PRESSURE CYLINDER FILLING

The ACE 5-Gas Panel is CTR’s PLC-controlled solution for automated multi-gas filling in industrial and medical gas applications. Designed to deliver highly accurate, repeatable fills for up to five gases simultaneously, the ACE Unit minimizes operator involvement while improving efficiency and consistency. Once installed, setup is straightforward—anchor the unit, connect power, fill manifolds, inlet gas lines, vent, and vacuum piping—and the system manages the entire filling sequence automatically.

Built into a UL-listed, NEMA Type 4 enclosure, the ACE Unit integrates automated fill, vent, and vacuum control within a single compact platform. PLC logic prevents over- and under-filling, supports pressures up to 3600 PSI, and allows configuration from two to five gases. Compatible with argon, carbon dioxide, helium, oxygen, and nitrogen, the ACE 5-Gas Panel provides an economical upgrade to existing fill systems while enhancing safety, reliability, and operational performance.



CONTACT US

Call us today to speak with one of our fill plant equipment specialists at: +1 (888) 424-8101 or click to contact us below:

Contact Us

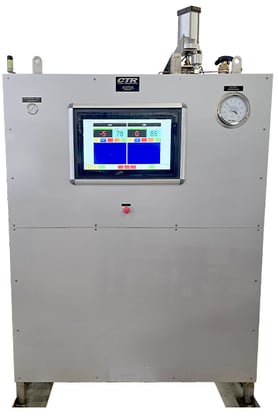

1 - ACE 5-Gas Control Panel for High Pressure Gas Cylinder Filling 2



Our ACE 5-Gas panels are custom-engineered to your specifications.

Typical Specifications:

System Type: PLC-controlled, fully automated multi-gas filling control panel

Gas Capability: Configurable for two to five gases, including argon, carbon dioxide, helium, oxygen, and nitrogen

Filling Operations: Automated fill, vent, and vacuum sequencing managed entirely through PLC control

Pressure Rating: Designed for maximum allowable working pressures up to 3,600 PSI, based on application requirements

Accuracy & Control: PLC logic prevents over- and under-filling by managing input pressure and completing the full fill cycle automatically

Safety Interlocks: Integrated safety logic for pressure limits, venting, and emergency shutdown to enhance operator and system protection

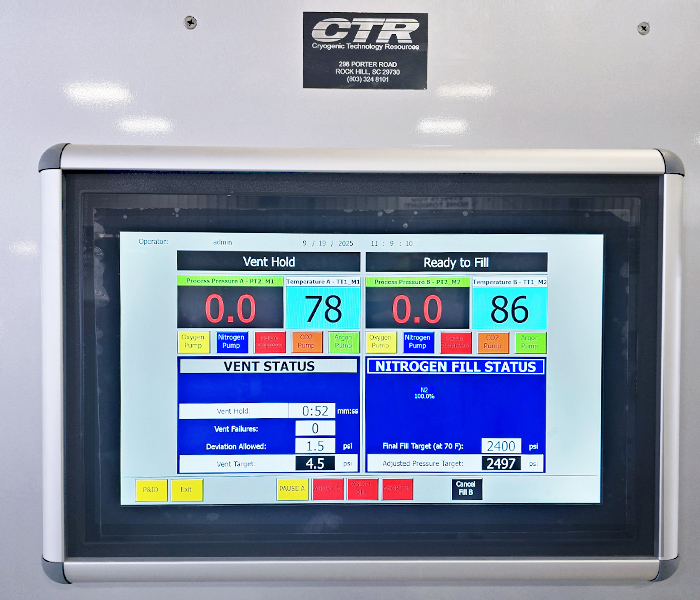

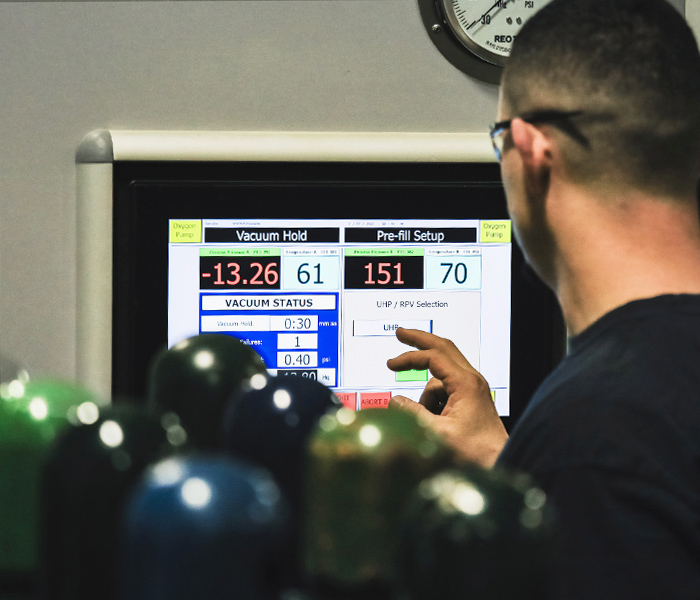

Indicators & Interface: Visual status indicators and operator interface for real-time system monitoring

Integration: Designed for seamless integration with new or existing fill stations and gas supply infrastructure

Customization: Engineered to customer-defined gas configurations, cylinder sizes, fill pressures, throughput requirements, and site conditions

Actual physical dimensions, control layouts, and final configurations are tailored to each customer application.

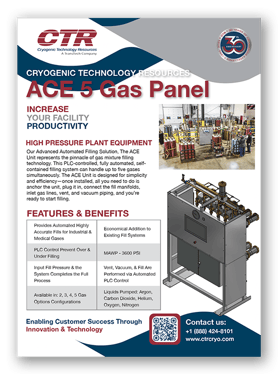

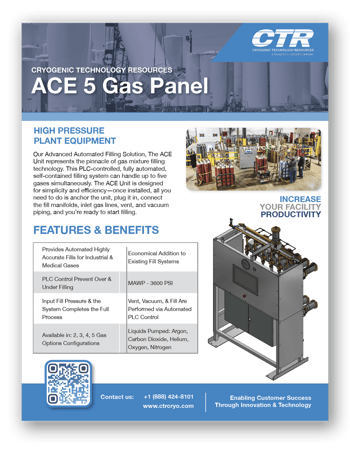

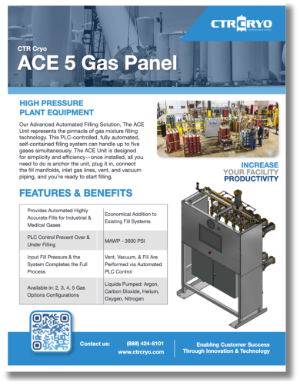

ACE 5 Gas Panel - High Pressure Cylinder Filling Automation & Control_Brochure_2



Complete the form to download
your FREE Brochure today!







Ready to Get Started? Request a Quote Today



Call us at +1 (888) 424-8101 to spec your ACE 5-Gas Panel today—or complete the form to upload your specifications or send us an inquiry now!
