CO2/N20 Duplex Mix Panel

ACE High-Pressure Gas
Cylinder Filling & Mixing System

Fully Automated Gas Mixture Filling

Safe, Efficient Gas Mixture Filling

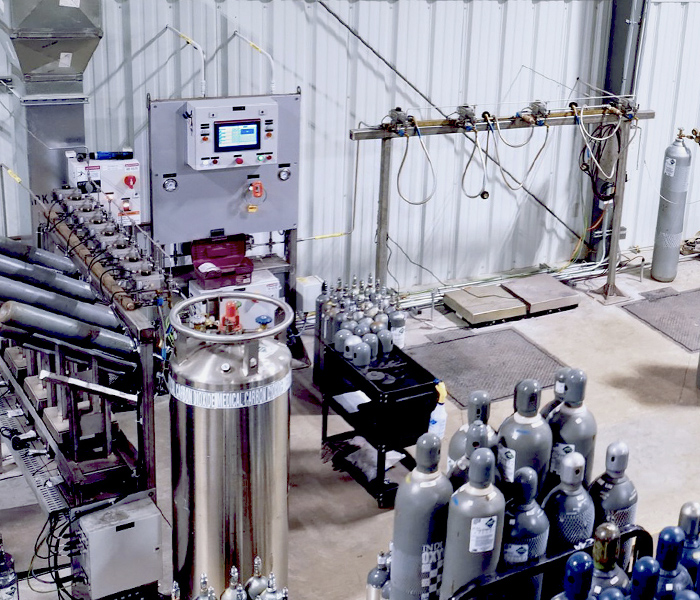

CTR's ACE CO₂/N₂O Duplex Panel is a high-pressure filling solution engineered for accurate, repeatable filling of CO₂ and N₂O cylinders in medical or industrial gas plant environments. This PLC-controlled, fully automated system can be configured to handle up to five gases simultaneously, providing precise control of gas flow and pressure while supporting safe, reliable filling operations. Its compact, plant-ready design makes it well suited for both new installations and facility upgrades.

Built with industrial-grade components and integrated safety features, the ACE CO₂/N₂O Duplex Panel supports controlled filling operations with provisions for pressure relief, manual bypass, and accurate weight-based fills when used in conjunction with a digital scale. Configurable to customer-defined cylinder sizes, gas selections, and operating requirements, the panel delivers dependable performance, streamlined workflows, and long-term operational value for high-pressure gas filling operations..



CONTACT US

Call us today to speak with one of our cylinder filling systems specialists at: +1 (888) 424-8101 or click to contact us below:

Request a Quote

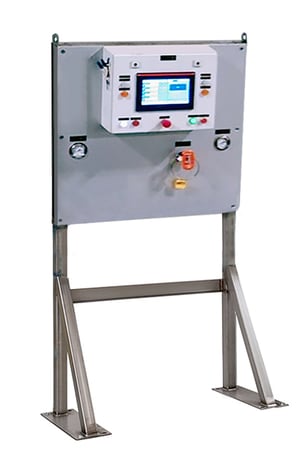

3 - ACE CO2 - N2O Duplex Mix Panel - for High Pressure Gas Cylinder Mixing & Filling_3



Our ACE Duplex Panels are custom-engineered to your specifications.

Typical Specifications:

System Type: PLC-controlled, fully automated high-pressure gas filling panel

Gas Capability: Configurable for CO₂, N₂O, or multi-gas operation—with capacity for up to five gases

Cylinder Range: Supports E-size through 75 lb cylinders; liquid cylinders available upon request

Pressure Rating: Maximum allowable working pressure (MAWP) up to 2,000 PSI

Overpressure Protection: Integrated relief devices provide an added layer of operational safety

Flow Control: Manual bypass valve included for flexibility during filling or maintenance

Fill Accuracy: Designed for use in conjunction with a digital scale to achieve accurate fill weights

Operation Mode: Duplex configuration supports consistent, controlled filling operations

Integration: Designed for new installations or retrofit into existing medical or industrial gas fill plants

Customization: Engineered to customer-defined cylinder sizes, gas configurations, and throughput requirements

Actual physical dimensions, controls, and final configurations are tailored to each customer application.

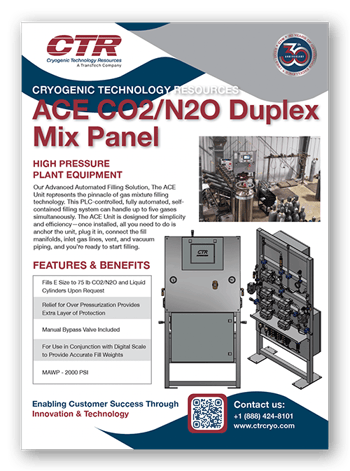

ACE CO2-N2O Duplex Mix Panel - High Pressure Cylinder Filling & Mixing_ Control & Automation_Brochure 2
